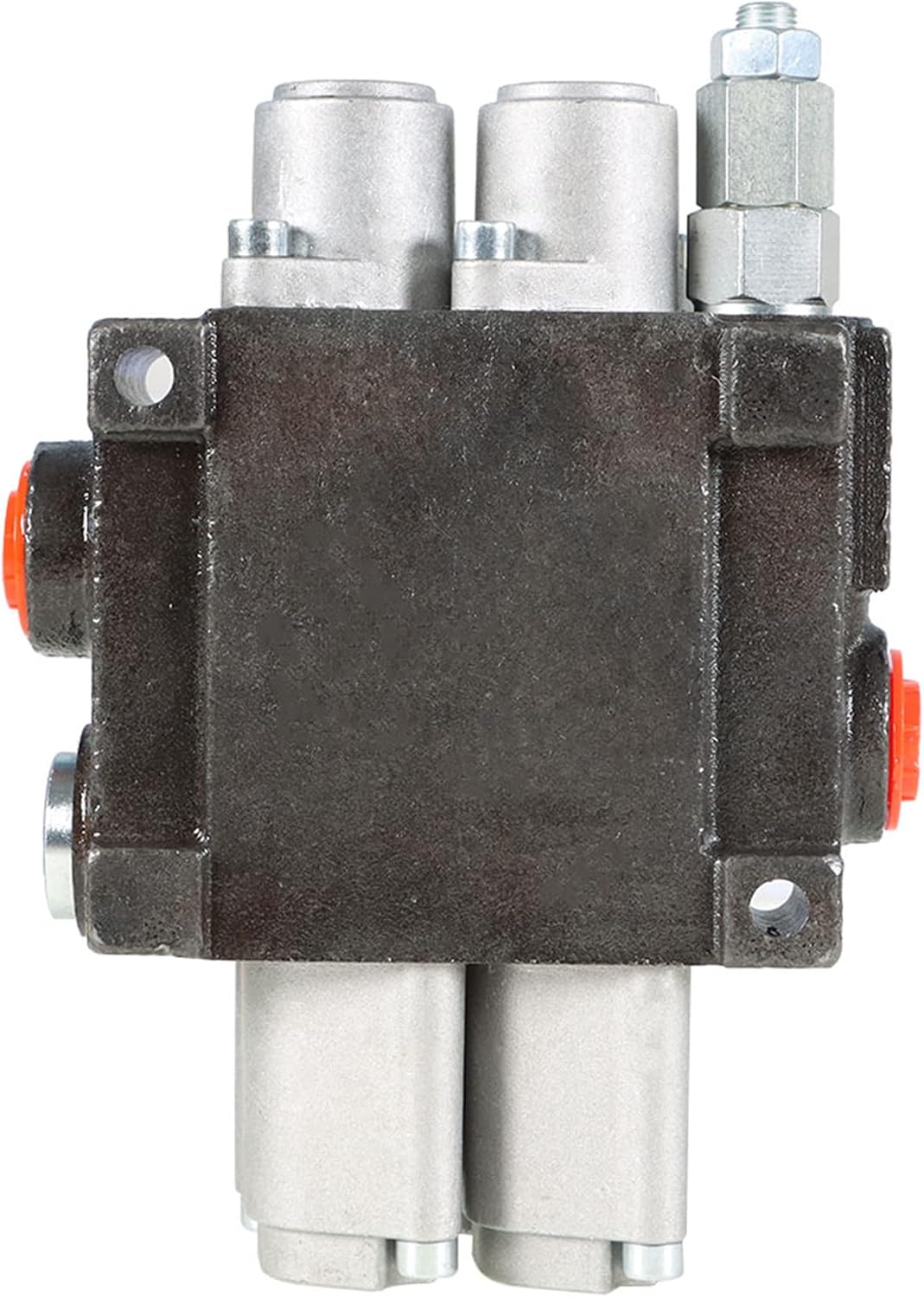

kimllier 2 Spool Hydraulic Valve 11GPM 3625PSI Hydraulic Directional Control Valve SAE Ports Double Acting Valve
Product details
| Management number | 231697493 | Release Date | 2026/06/18 | List Price | US$29.30 | Model Number | 231697493 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- This loader control valve come with 2 spools, with cast iron construction for long-time use.
- The relief valve range is up to 3625PSI and the maximum flow is up to 11GPM. A, B Work Ports: 10 SAE O-Ring (7/8-14) Thread, Inlet Port: 10 SAE O-Ring (7/8-14) Thread, Outlet Port: 10 SAE O-Ring (7/8-14) Thread.
- The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
- Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral place. There are springs at the bottom of the handles that make the joysticks easy to control.
- Fit for small tractors, tractors loaders, log splitters, and etc.
| ASIN | B0B18LKVD2 |
|---|---|
| Size | 2 Spool 11 GPM |
| Brand Name | kimllier |
| Unit Count | 1.0 Count |
| Valve Type | the relief valve |
| Item Weight | 4800 Grams |
| Thread Size | 7/8-14 |
| Thread Type | SAE |
| Manufacturer | kimllier |
| Model Number | Does Not Apply |
| Material Type | Cast Iron |
| Connector Type | Threaded |
| Item Dimensions | 8.66 x 6.69 x 3.94 inches |
| Number of Ports | 2 |
| Maximum Pressure | 3625 Pound per Square Inch |
| Specification Met | sae |
| Inlet Connection Size | 1.13 Inches |
| Inlet Connection Type | SAE |
| Outlet Connection Size | 1.13 Inches |
| Outlet Connection Type | SAE |
| Manufacturer Part Number | KM-1875434-633056-LR |
